Stands for testing hydro-mechanical transmission

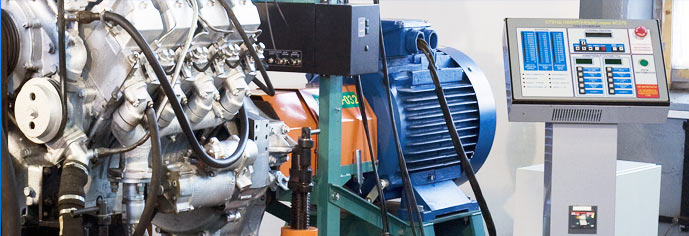

Стенд обкаточный универсальный модели КС-04

“KOPIS” Ltd. it is developed, patented and the universal stand model КС-04 for a running in of hydro-mechanical transmissions (HMT) of career dump-body trucks and cars "BelAZ" is serially made.

The stand model КС-04 is the only thing in Russia, the CIS countries and foreign countries serially made modern innovative equipment providing after-repair running in hydro-mechanical transmissions of "BelAZ" according to instructions of Open Society "BelAZ" on after-repair a running in, control and adjustment of transmissions.

Developed and realized in the stand model КС-04 the newest technologies of automation, universality, power- and energy saving provide the highest quality of after-repair runnings in HMT of "BelAZ".

Technical decisions of the stand model КС-04 are patented.

The stand model КС-04 is approved and it is recommended by Open Society "BelAZ" to application to the organizations which are carrying out operation, repair and service of career dump-body trucks and technics of "BelAZ".

The newest technologies of “KOPIS” Ltd. provide to Users of stands model КС-04 following advantages:

100 % conformity to Open Society "BelAZ" instructions on after-repair running in, control and adjustment HMT;
The minimum cost for the equipment of a similar class;
Universality;
Small power consumption;
Reduction of expenses for the electric power and stand operation in natural and term of money more than on 50 % in comparison with the out-of-date similar equipment of the Soviet period;
Reduction of floor spaces;
Personnel optimization;
The maximum automation;
Simplicity of installation and service, convenience of using;
Reliability and safety;
Guarantees and service of the manufacturer – “KOPIS” Ltd.;
Serially made equipment. Shipment term - within 10 days.

Stands made by individual orders for a running in and test HMT solve specific problems of the Customer, such as:

Running in and test of various models of HMT;
Individual requirements to parameters of a running in, control, adjustment HMT;
Individual requirements to load HMT;
Individual requirements to formation of accounting reports of running in HMT.

SERIALLY MADE STAND MODEL КС-04

STAND MODEL

TESTED HMT

КC-04

Various HMT of career dump-body trucks and cars "BelAZ"

Serial complete set for testing HMT: (5+2), (3+1), (6+1) of career dump-body trucks load capacity 30-60 tons and cars "BelAZ"

Additional complete set:

- HMT (4+4) of a wheel bulldozers “BelAZ” series 7823;

- HMT (4+3) of a face-to-face loaders “BelAZ” series 7822;

- Manual transmissions of tractors “Kirovets”: К-700, К-701, К-702, К-703, К-744.

BASIC TECHNICAL CHARACTERISTICS

Overall dimensions (length х width х height), mm:

Stand: 2930 х 1150 х 1900;
Electric equipment Case: 625 х 610 х 1915;
Control panel (height х depth х width), mm: 1160 х 460 х 4905;
Station refueling (length х width х height): 800 х 600 х 1100.

Weight: 1400 kg.

The established total capacity of an electric equipment: 58kw

Power line: number of phases - 3; pressure - 380 In; frequency - 50 Hz

Pressure of the compressed air brought to the stand - 3... 4 kg/cm²

Quantity of attendants - 1 person

The stand is established on vibration isolating support. Special base is not required.

Controllable parameters:

Frequency of rotation of entrance and target shaft of HMT;
The Twisting moment on entrance to shaft of HMT;
Pressure in the trunk main;
Pressure in the hydrotransformer;
Pressure in greasing system;
Pressure in tubes of Pito;
Pressure in the channel of inclusion of friction clutches of blocking;
Pressure upon an input in the retaining valve;
Temperature of a working liquid;
The Expense of a working liquid;
Time (duration of a running in).

The stand model КС-04 is a complete equipment. It doesn't assume additional options and the additional expenses connected with it.
