Stands for testing distribution gearboxes

A unique serially made power saving up and power effective stands provide to Users all advantages of the equipment of “KOPIS” Ltd., such as:

• Minimum cost for the equipment of a similar class;
• Universality;
• Power savings;
• Reduction of expenses for the electric power and stand operation in natural and term of money more than on 50 % in comparison with the similar equipment;
• Reduction of floor spaces;
• Personnel optimization;
• The maximum automation;
• Simplicity of installation and service, convenience of using;
• Reliability and safety;
• Guarantees and service of the manufacturer – “KOPIS” Ltd.;
• Serially made equipment. Shipment term - within 14 days.

Stands made by individual orders for a running in and test DG solve specific problems of Customers, such as:

• Running in test DG which are not included in a base complete set;
• Individual requirements to running in and test DG parameters;
• Individual requirements to formation of accounting reports of running in DG.

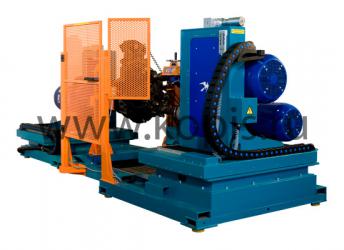

SERIALLY MADE STANDS MODELS КС-03 AND КС-031

THE BASIC TECHNICAL CHARACTERISTICS

Overall dimensions (length х width х height), mm:

• Stand: 3800 х 1300 х 1700;
• Electric equipment case: 865 х 625 х 2250;
• Control panel: 490 х 460 х 1160;
• Mobile refueling station with heating: 400 х 400 х 700.

Weight of stands: КС-03 – 1600kg; КС-031 – 1700kg.

The established total capacity of an electric equipment: 77kw

The power saving up equipment. The capacity consumed by the stand:

- In a mode «a running in without loading» - 30 kw;

- In a mode «a running in under loading» (with recuperation of the electric power) - 35 kw.

Power line: number of phases - 3; pressure - 380 In; frequency - 50 Hz

Quantity of attendants - 1 person

The stand is established on vibration isolating support. Special base is not required.

Controllable parameters:

• Frequency of rotation of entrance shaft;
• Frequency of rotation of forward flange;
• Frequency of rotation of back flange;
• The brake (loading) moment on entrance to shaft;
• The brake moment on forward flange;
• The brake moment on back flange;
• Pressure in case;
• Time (duration of a running in).

Operating modes:

• Running in without loading;
• Running in under loading;
• Differential test;
• Check on tightness.

Stands of model КС-03 and КС-031 are the complete equipment. It doesn't assume additional options and the additional expenses connected with it.
